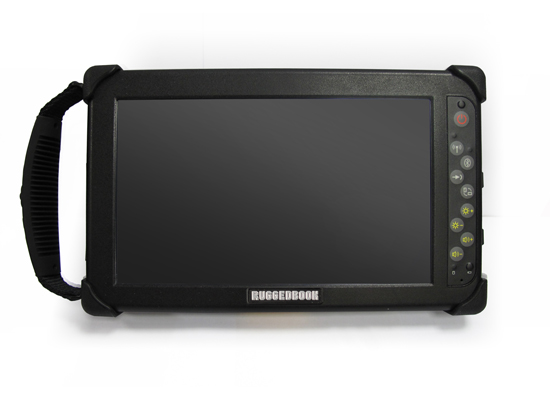

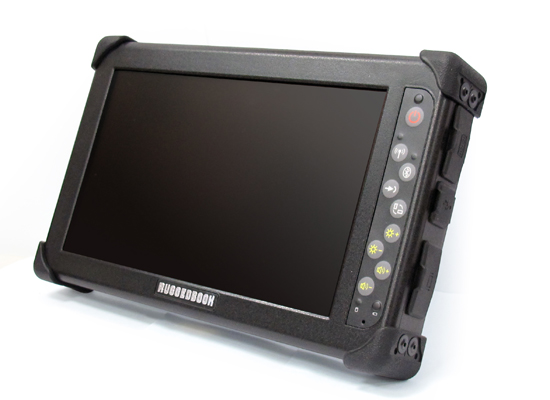

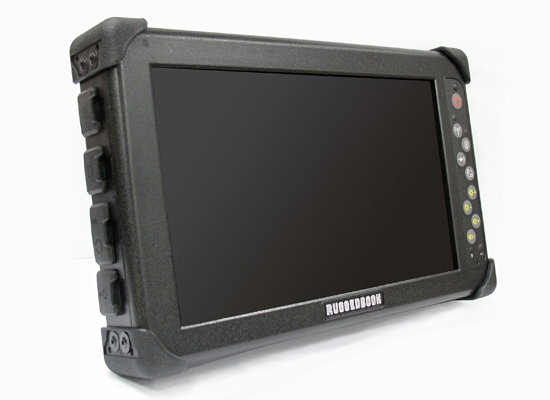

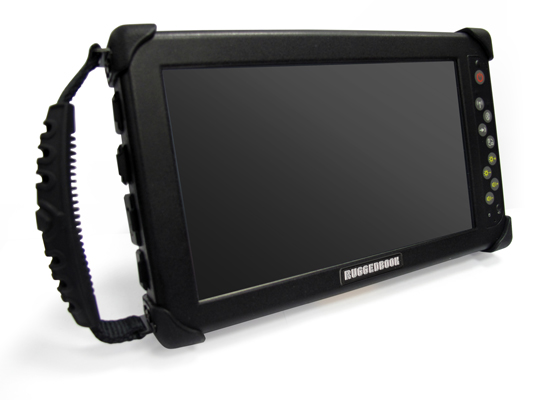

Rugged Tablet PC-SR820


 Intel® Atom Z530 16GHz Processor
• 8.9" WSVGA TFT LCD with resistive touch panel
• 2.0 Mega Pixels Camera
 WLAN 802.11 b/g/n
• Bluetooth 2.1 class II + EDR
• WWAN
 1D/2D barcode scanner
• GPS
 HF RFID
 Fanless Design
 MIL-STD- 810G
 IP54 & IP65 Front Panel




Features:

SR820 is a versatile Rugged Tablet PC equipped with 8.9” TFT LCD, and adopts the latest Intel® ATOM Z530P industrial grade processor with Intel® US15WP SCH chipset. It also meets IP65 environmental rating protection requirement, and is well protected by four rounded rubber bumpers.

Features of SR820 are in terms of the latest display LED backlight technology with the touch screen/ sunlight readable extraordinary functions, 1GB up to 2GB DDR II SDRAM, compact 1.8” 60GB HDD, and fully connection of I/O ports such as 2M pixel integrated camera and Barcode Scanner. For communication, it includes highly integrated module 10/100/1000 Ethernet, 802.11 b/g/n WLAN, Bluetooth 2.1 +EDR, and optional WWAN/ 3.75G module. The Rugged Tablet PC SR820, providing powerful functionality and instant response, is easy to handhold and satisfy all users” demand. With above strengths and features, SR820 is applicable for various applications, including hospitality, transportation, measuring, field service, logistics and Telecommunication, etc.



Specifications:
CPU

Intel® Atom Z530P 1.6GHz Processor
Intel® US15WP system controller hub (SCH)

LCD Panel

8.9” WSVGA (1024x600) TFT LCD resistive touch panel
Optional: Sunlight readable display

Memory &
Storage

1GB RAM (up to 2GB max)
1.8” 60GB HDD
Optional: 32/64GB SSD

Audio Build-in microphone and speaker

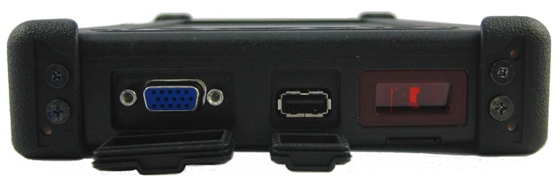

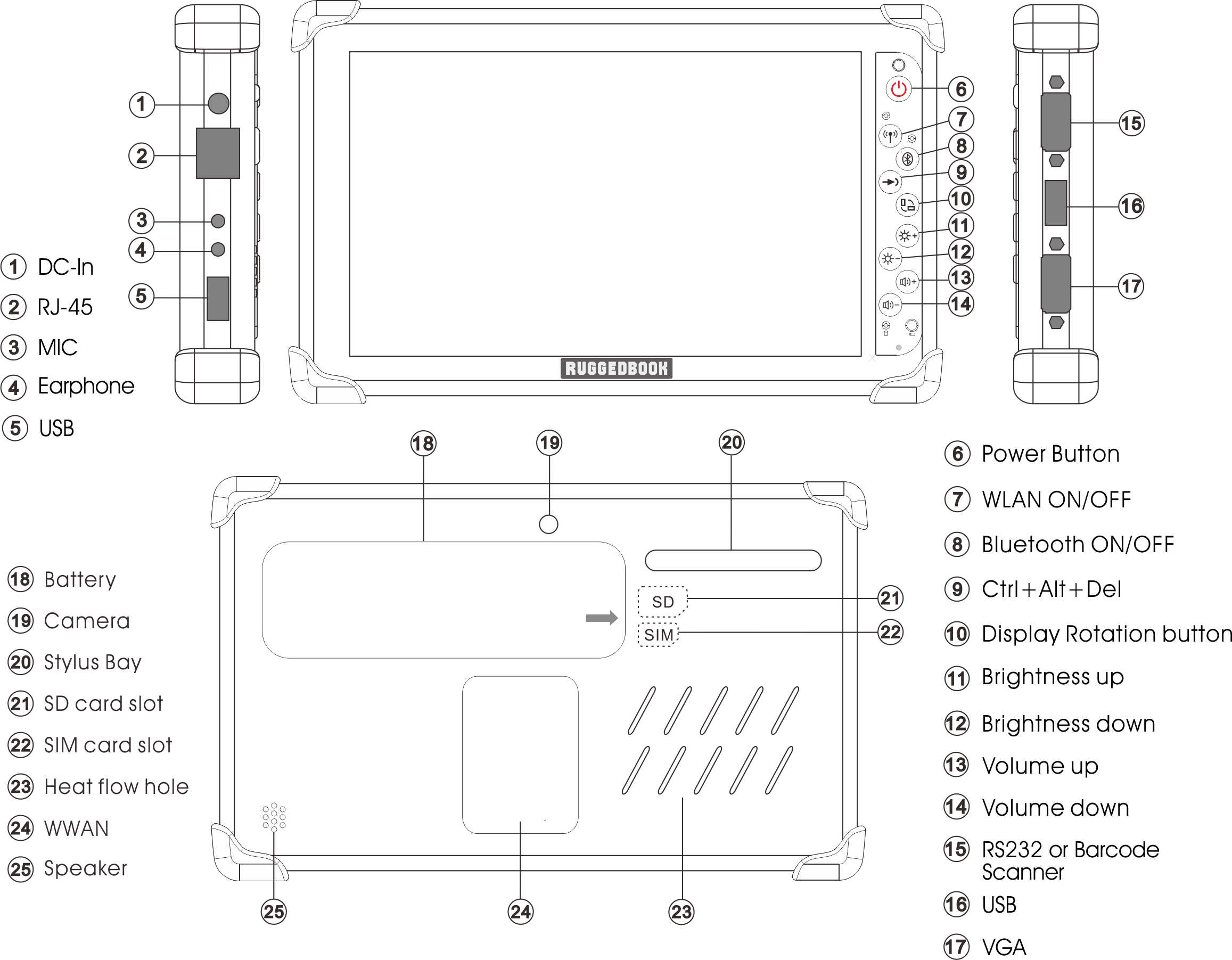

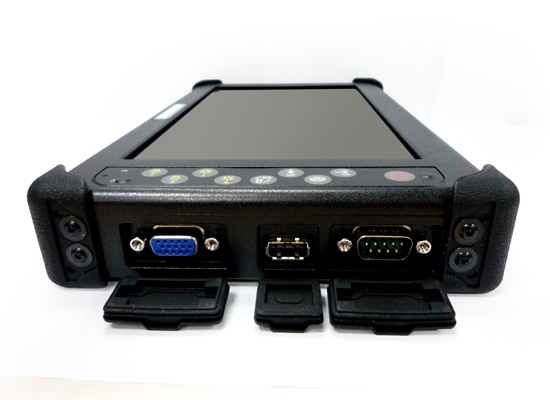

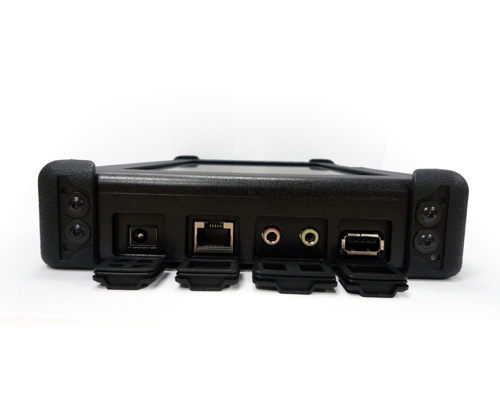

Interface

2 x USB 2.0
1 x VGA
1 x RS232
1 x RJ-45
1 x Earphone
1 x MIC
1 x DC-in
1 x Docking connetor

Expansion Slots

1x SD/MMC card slot
1x SIM card slot

Camera

1x 2.0 Mega-Pixels camera
Optional: 5.0 Mega-Pixels camera

Barcode Scanner

Optional: 1D barcode scanner
Optional: 1D/2D barcode scanner

RFID Optional: HF RFID reader
Wireless

WLAN 802.11 b/g/n
Bluetooth 2.1 class II+ EDR
Optional: WWAN

Power Supply

Adapter Input AC: 100V-240V,50Hz-60Hz
Output: DC 12V/36W
Li-Ion battery 5200 mAh
6 max. hours in normal usage

Button Key

Power button
Screen Rotation
SAS key
WLAN
Bluetooth Switch
Volume up
Volume down
Brightness up
Brightness down

Software

Windows XP Tablet PC Edition
Windows 7 Professional Edition

Operating
Temperature

Operating:0℃ to + 60℃;
Storage: -40℃ to +85℃
Cold boot: 0℃(battery >75%charge)

Dimension &
Weight

252x153x40mm (with bumper)
252x153x33mm (without bumper)
1.2 kg

Durability Features MIL-STD-810G, IP54 & IP65 (Front Panel)
Certification

FCC
CE
cUL

Accessories

Service DVD
Power cord
Power adapter
Stylus

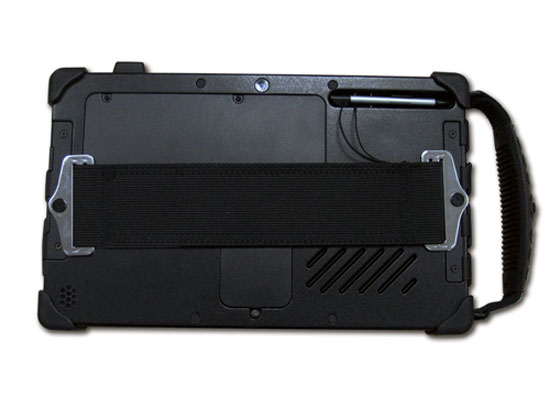

Hand strap kit
Anti-scratch surface film

Warranty 1yr up to 3yrs limited warranty
















Strap

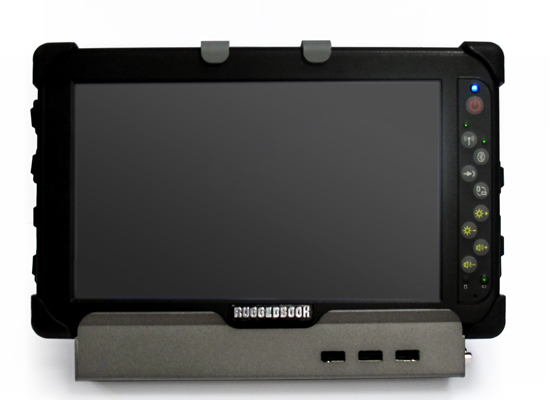

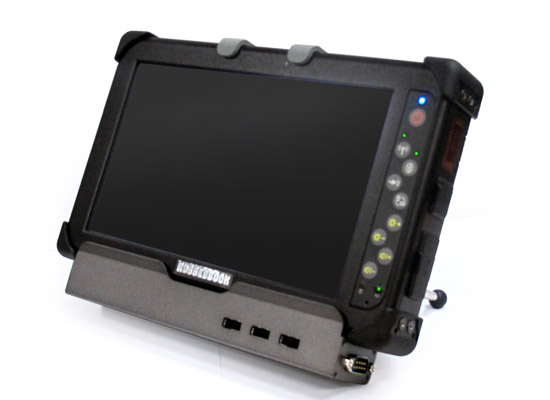

Docking station

Protection film


Carry handle kit

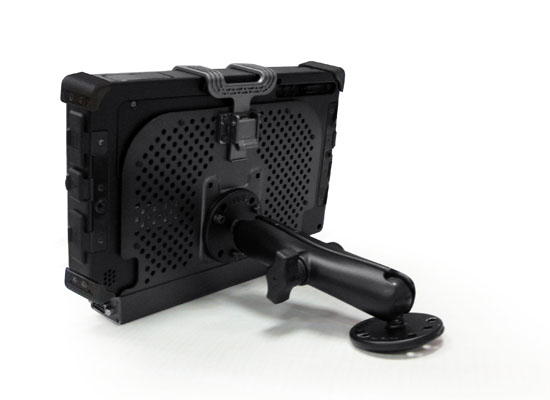

RAM Mount kit

Carry bag


Battery pack

AC power adapter:

Stylus


Car adapter


Field Service
Government
Construction & Manufacturing

Transportation
Logistics
Hospitality

Retailing
